Opis

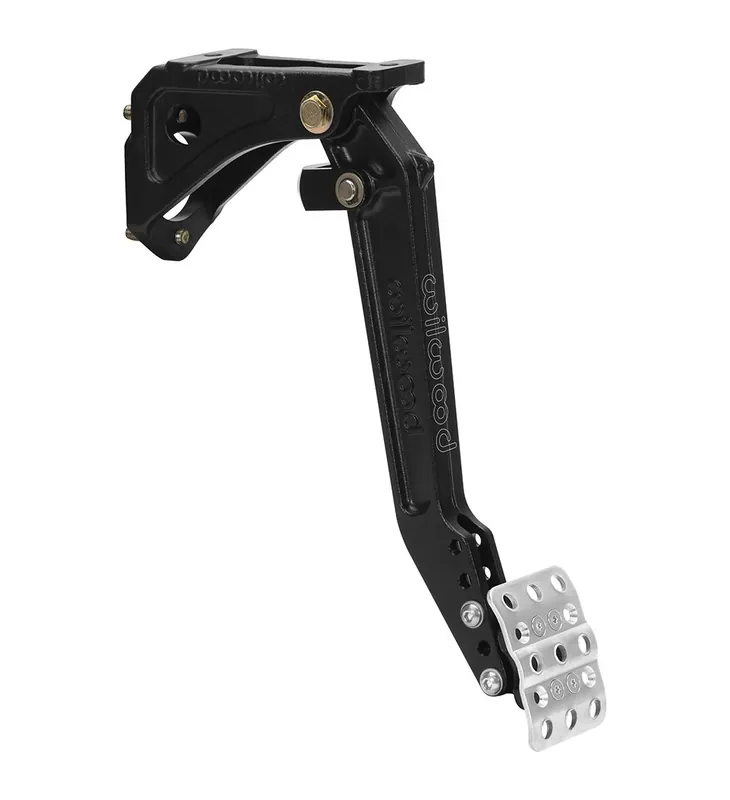

Swing Mount Clutch / Brake Pedal-Adjustable Ratio
Adjustable ratio single clutch pedal, in a forward swing hanging assembly. Pedal head adjusts vertically to provide a 6.25, 6.63, or 7.00:1 ratio for more feel or less pedal effort. The non-skid waffled pedal pad can be laterally adjusted 1/2 inch in either direction for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.
| Pedal Type | |
|---|---|
| Material | Aluminum |
| Finish | Black E-coat |
| Pedal Description | |
| Mount Loc | Swing |
| Mount Facing | Forward |
| Balance Bar | No |
| Mount Length (in) | |
| Pedal Ratio & Length | |
| Pedal 1 Ratio | 6.25-7:1 |
| Pedal 2 Ratio | |
| Pedal 1 Length (in) | |
| Pedal 2 Length (in) | |
